DDDA
Instrument Control Data Acquisition Software

Simple Data Acquisition with RS-232 or GPIB
No Programming Expertise Needed
Instant Graphical Output
Exports Data to Analysis Programs

Install a FREE 30 day trial version of DDDA

To Register your copy of DDDA for only $99, visit the SRS website. Register Now

Requirements

• 90 MHz or higher Pentium class computer
• Windows 95/98 or NT
• 32 MB RAM (64 MB recommended)

For Technical Support please send an email to dddasupport@thinksrs.com

• Send, read and plot data from any instrument using GPIB or RS-232
• Graphical and tabular data display
• Save data to file in multiple formats including ASCII and MATLAB^®
• Easy to exchange data with data analysis programs
• Integrated debugger
• Includes getting started tutorials and sample programs
• Extensive help menus
• Compatible with Window 95/98 and NT

DDDA is a simple data acquisition program for Window 95/98 and NT. It allows you to work with any instrument using a GPIB or RS-232 interface.

It is designed for quick and simple data acquisition projects. You can talk to your instrument and record and plot data, all without the complexity of GPIB and RS-232 programming. Several sample instrument setup files are provided for your guidance.

There are no drivers to install or debug. It is convenient to export data to other programs for data analysis. DDDA is the perfect choice for simple, fast data acquisition tasks that you encounter every day.

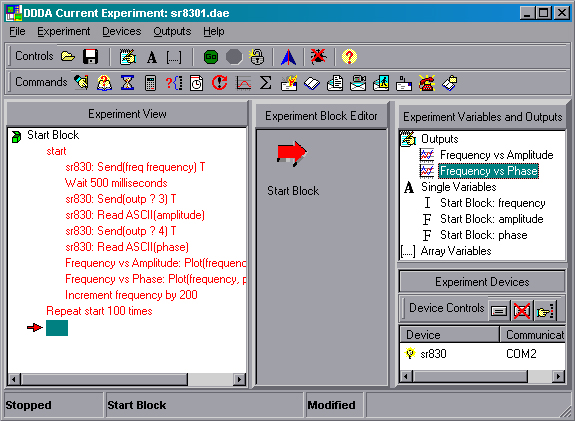

Everything you need to know about your entire program is displayed in one view.

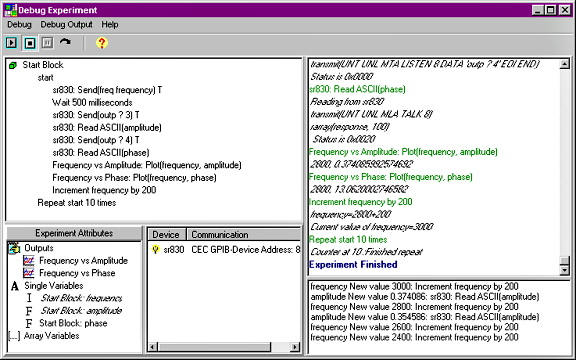

A debugger is available to step through your program, line by line to help find errors.

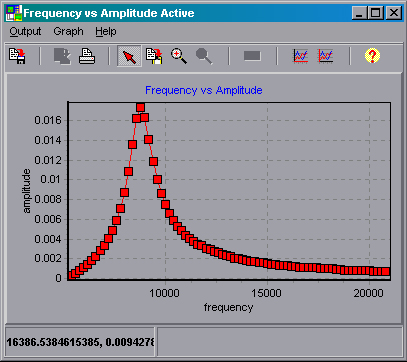

Data can be displayed in multiple formats.
